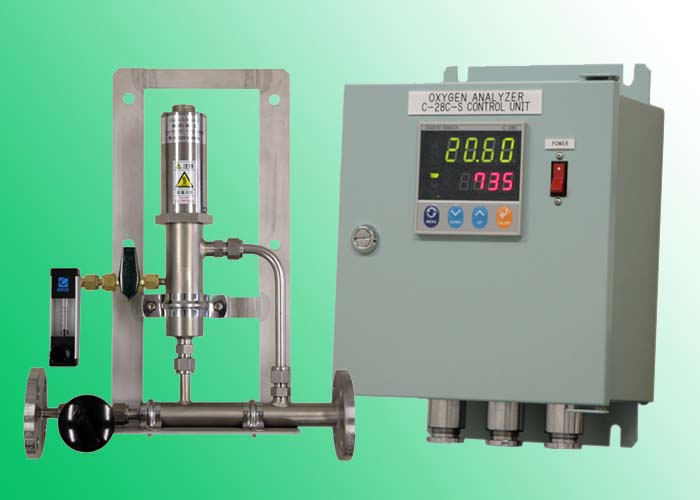

What's TB-ⅡS / C-28C-S
Detective element is made of Zirconia electrolyte.
The mainly use of this sensor is for measurement of partial oxygen pressure in the vacuum atmosphere.
 Accepts the large flowing quantity of the sample (about 50L/min). |
| It can be measured even if sample gas is dewy. |
| Simple structure, easy maintenance. |
| Composition | TB-ⅡS Sensor unit、C-28C-S Control unit | |
| Installation | Panel type、Wall type | |
| Measuring range | 0 ～ 25%O2 | |
| Output | D.C.4～20mA （isolate） | |
| Alarm | H/HH ※possible to set other one | |
| Piping | JIS 5K 15A flange | |
| Linearity | Less than ±1%FS | |
| Repeatability | Less than ±1%FS | |
| Response | 90% reading 10sec.（Swinging to a high density side） | |
| Drift | Less than ±2%FS/week | |
| Using temp. | 80℃ max（Sensor unit） 50℃ max（Control unit） | |
| Sample pressure | 0.1MPa max（Sensor Inlet） Fluctuation band 0±2KPa | |
| Sample temp. | 300℃ max（Sensor Inlet） | |
| Warm up time | About 20minutes | |
| Power | A.C.100±10V 50/60Hz 200VA max. | |
| Accessory | Inter-connecting cable（3m） | |
| Option | The set of Standard gas、Change of flange size | |
